What's new in Nexus v1.5.0 – Nexus Quick Articles

Relates to versions - 1.5 (MM24.5)

Drillhole Object - CSV format support (upload/download)
Wireframe Object - third-party triangulation support
Document viewer - preview MS Office, Text, Image and PDF files
Label version - tag actual file version
Batch upload improvement - upload thousands of files faster (from Browser or MMO&B24.5)
MMO&B24.5 Form sets storage - save your form sets directly to Nexus storage
Enhanced Drillhole Object visualization - show solids along the traces and preview Collar and Pattern properties

Drillhole Object - CSV format support: Upload Drillhole data from third-party software in CSV, directly to a Nexus Drillhole object using specified Upload drillhole data tool with easy drag and drop and fields mappings. Preview Drillhole data from third-party sources in Nexus web viewer using all existing tools like downhole colour coding, section, scaling/rotation, etc. Download Drillhole Object as batch of CSV format tables in one ZIP file directly from the Browser. Upload in MMO&B Drillhole data format and download in CSV, avoiding import/export steps (or vice versa).

upload drillholes.png

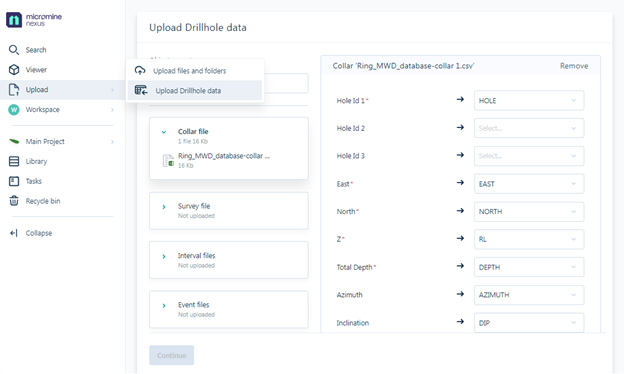

Upload Drillhole data interface.

Visualization of uploaded Drillhole data in CSV format with colour coding and drillhole properties.

Wireframe Object – Third-party Triangulation Support: Easily upload third-party triangulation data in .00t format directly from your browser and preview it in the Nexus 3D Viewer. You can also upload in .TRIDB format and download in .00t, or vice versa, without the need for cumbersome import/export steps. This streamlined process allows for seamless sharing across different team members using various software applications, all within one cohesive Object.

upload 00t.jpg

Upload third-party format using drag-and-drop to Nexus browser.

Use the “EYE” button to quickly open the file in Nexus 3D viewer.

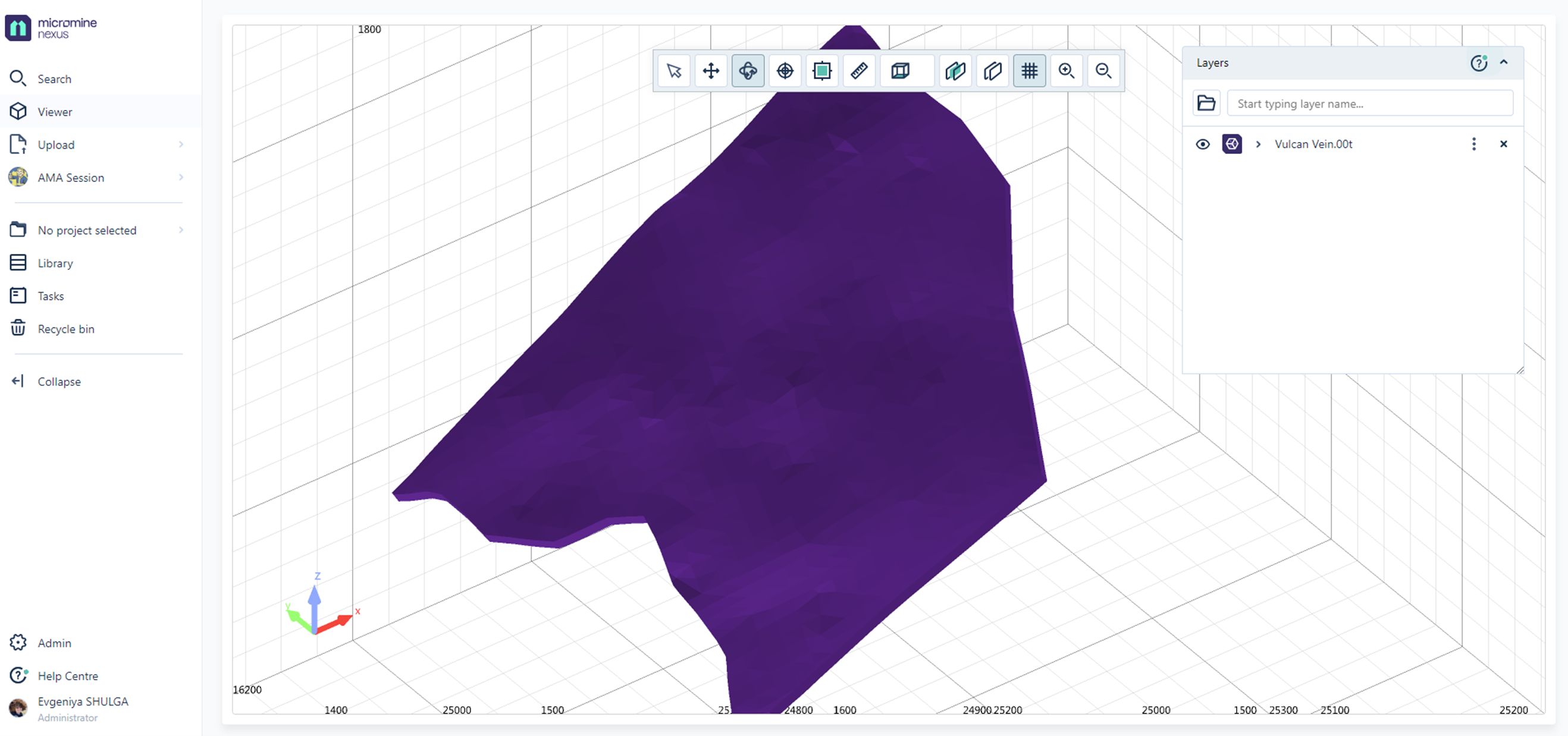

Preview the model inside Nexus 3D Viewer environment with all the available Viewer tools and visualization settings.

Document viewer functionality enables users to preview documents stored in Nexus without downloading them, accessible on any device. Supported formats include Text, MS Office, Images, and PDFs. Simply click on the document to preview, with all necessary tools available such as paging, rotation, and scaling.

document preview.png

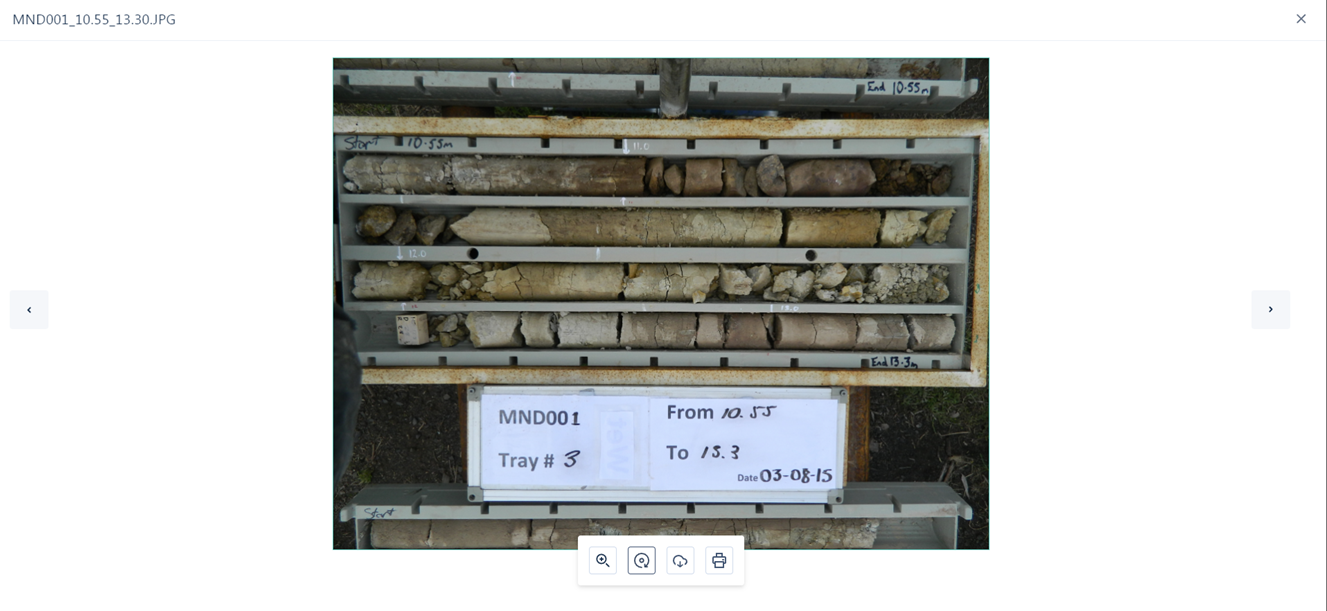

Core image preview in Nexus Document Viewer

Introduce version labeling functionality to display customized version tags within version branches, enhancing navigation across multiple file versions. Custom tags provide versatile usage in various user scenarios, such as document approval processes, improving workflow efficiency. Simple process of adding and deleting tags for each version.

label version.png

Version tags to show which version node is actual and ready for usage

Enhance batch upload functionality to allow for the simultaneous uploading of a large number of files in a single operation from the MMO&B24.5 project or from the Nexus browser version, thereby improving user experience.
The MMO&B 24.5 version now supports Nexus storage for Form Sets. Form Sets can be directly saved to Nexus within an MMO&B linked project, allowing other users to access these form sets from Nexus directly into their local projects. There's no need for users to go through export or import steps; they can utilize these form sets directly from Nexus. Additionally, all permission control rules will be enforced; if a user lacks permission to modify the form set, they won't be able to do so.

form set.png

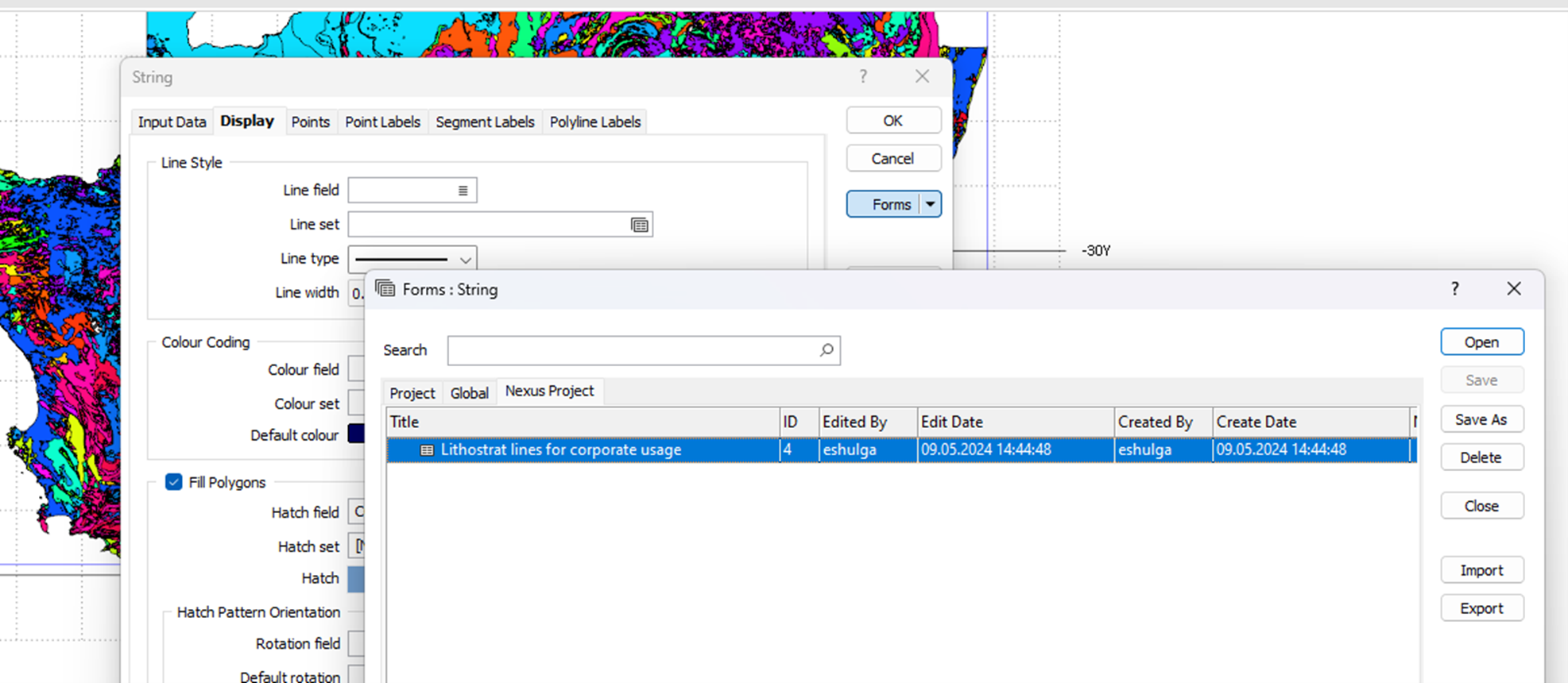

Nexus Project From Sets list from within MMO&B24.5

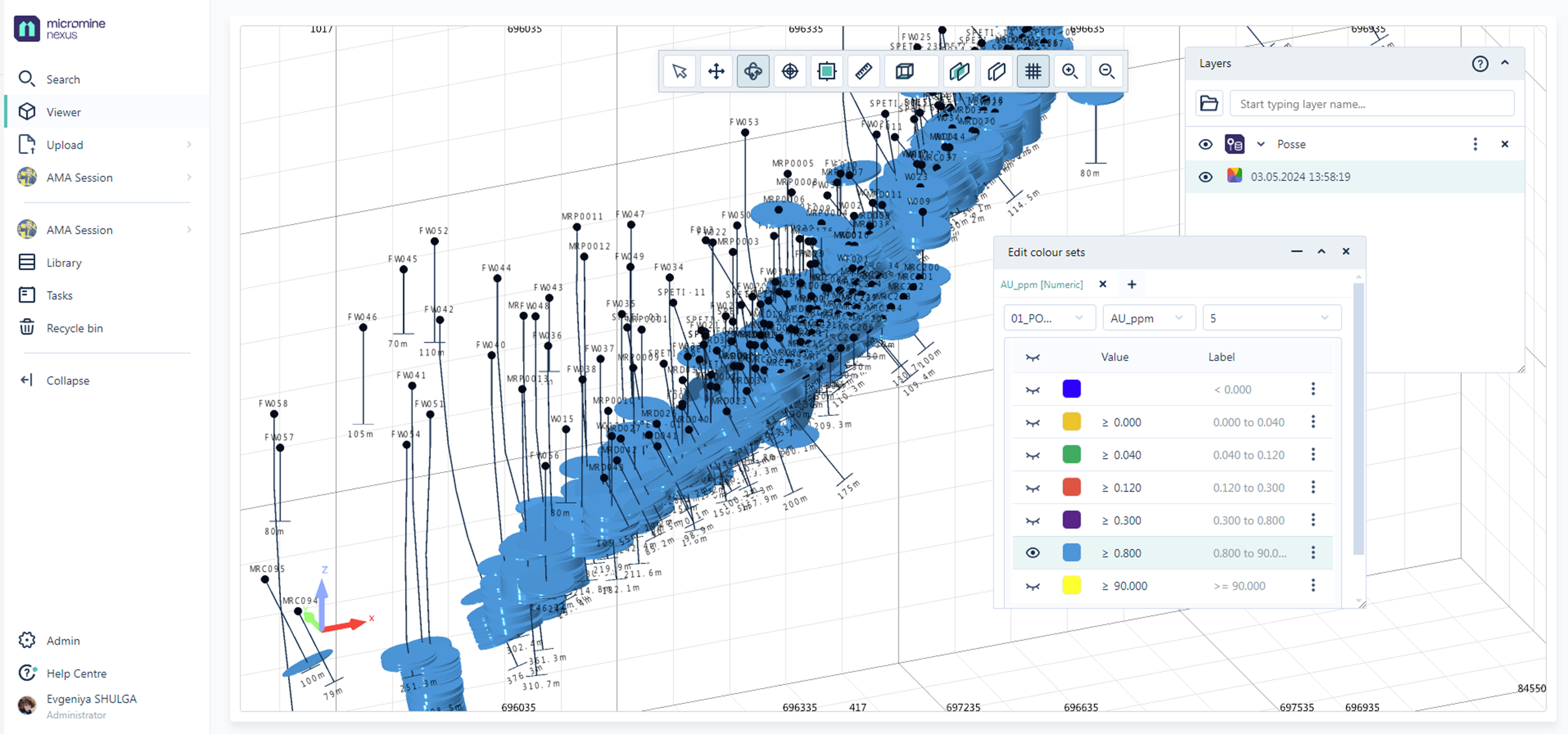

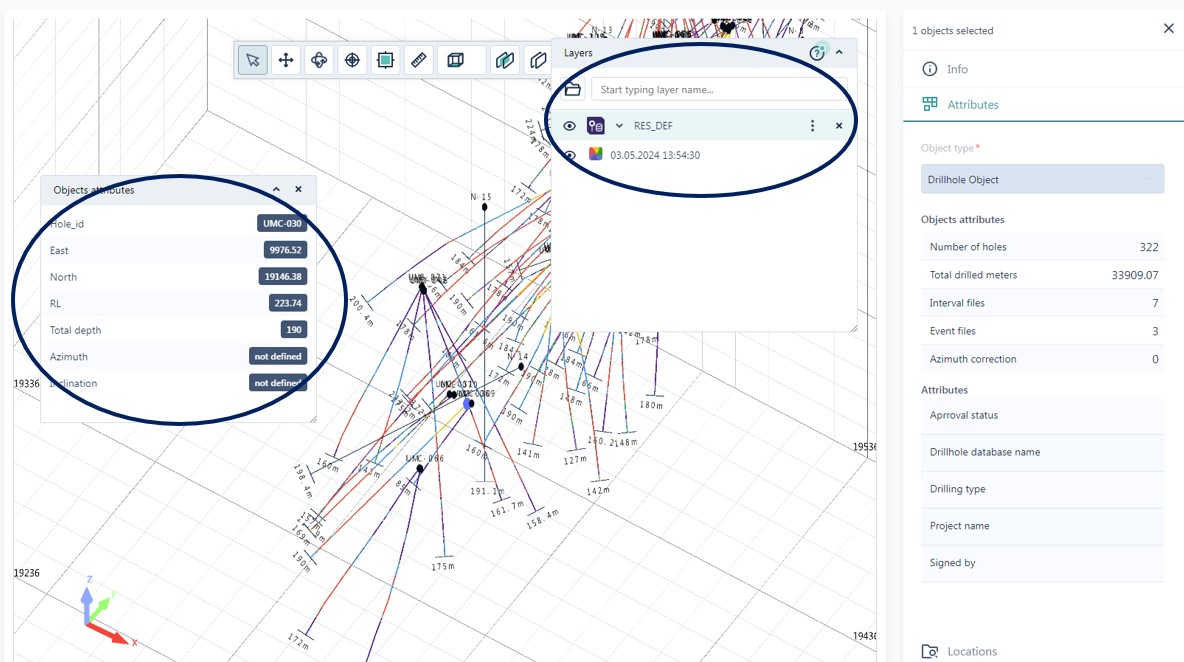

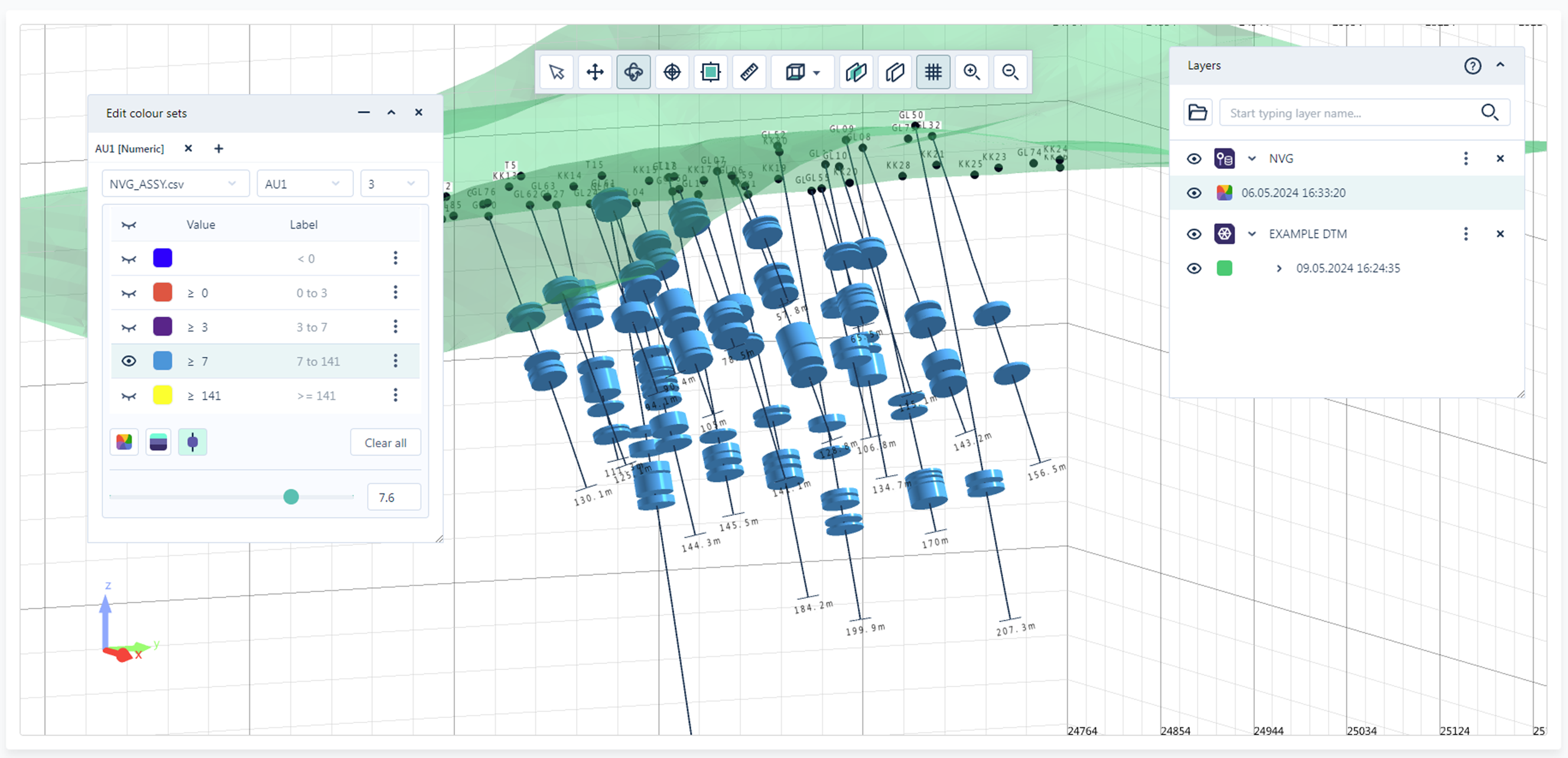

Enhanced visualization of Drillhole Objects: Introduce a solid traces mode to display downhole color coding for character or numerical fields, as well as delineate definite intervals for specific grade ranges or geological codes. Preview Drillhole object properties for selected collars, including Hole ID, Coordinates, Total Depth, Azimuth, and Inclination. Also, display pattern-wide statistics such as the number of holes, total drilled meters, number of interval and event files, and azimuth correction.

solid view.png
