Points and Strings visualisation

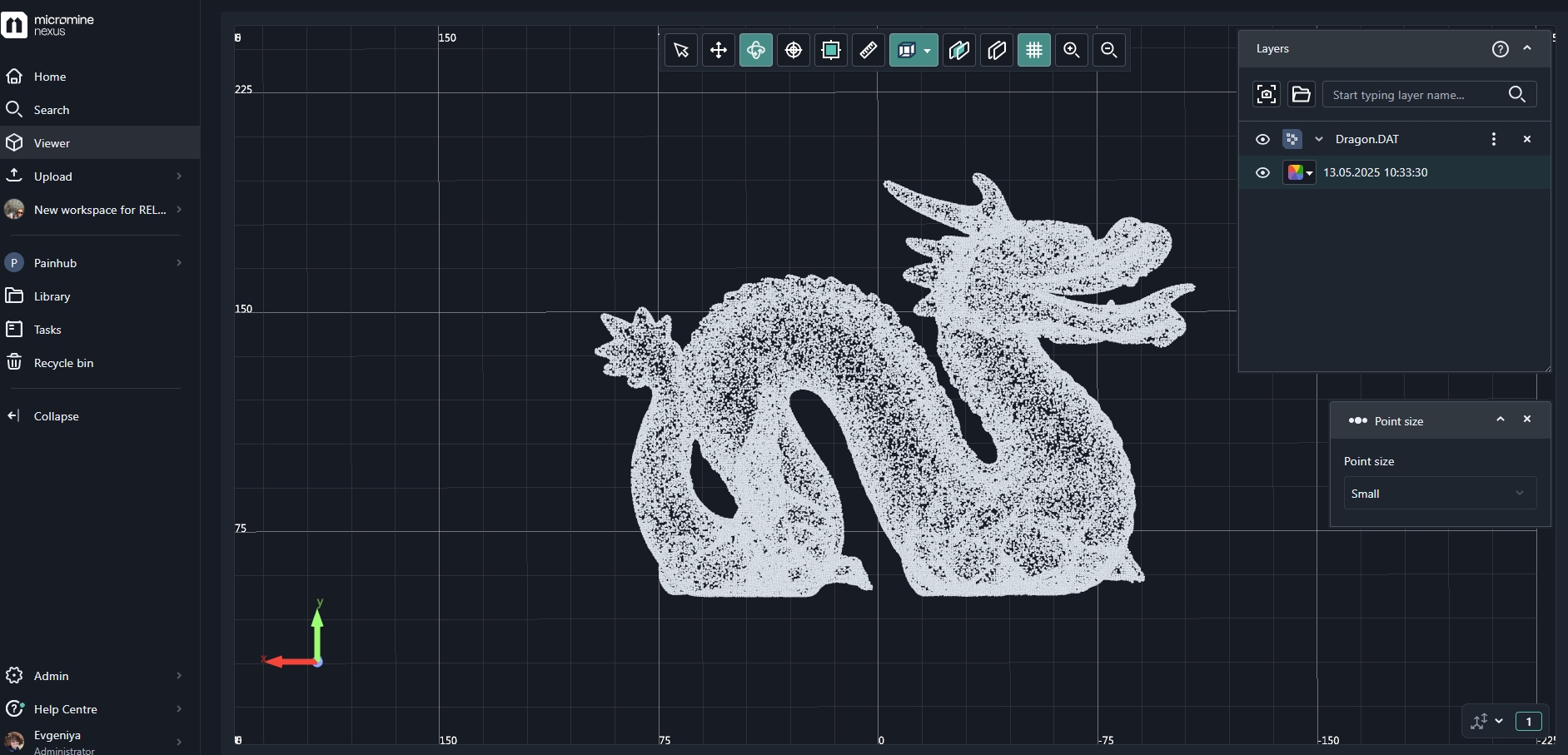

Points.DAT preview in Nexus Viewer

Micromine Nexus Viewer now supports the visualisation of point data from Micromine Origin & Beyond. All .DAT files uploaded to Nexus—whether via the browser or directly from Origin & Beyond—can now be previewed within the application.

Supported .DAT files will display an "eye" icon in the Nexus Project or Library, indicating that a preview is available.

Coordinate fields will be automatically mapped based on standard field names.
If your coordinate fields use custom names, you can manually map them by selecting the three-dots menu on the Point object in the Layers panel within the Viewer.

The three-dots menu for Point objects now includes Display Options.

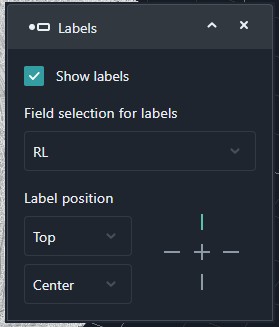

Users can customise the point size, choose the label field, and set the label position directly from this menu.

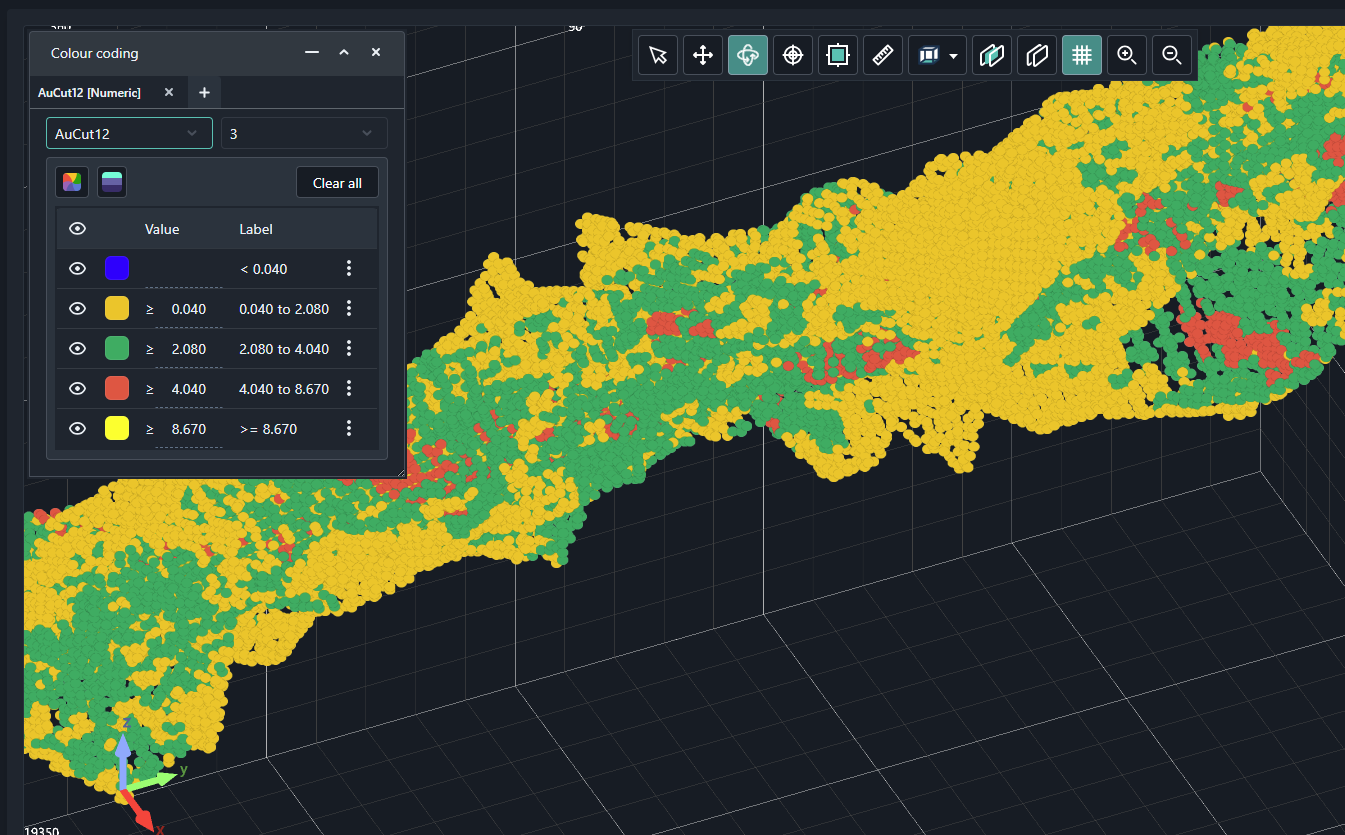

Points visualisation now also supports colour coding based on selected character or numeric fields from this file.

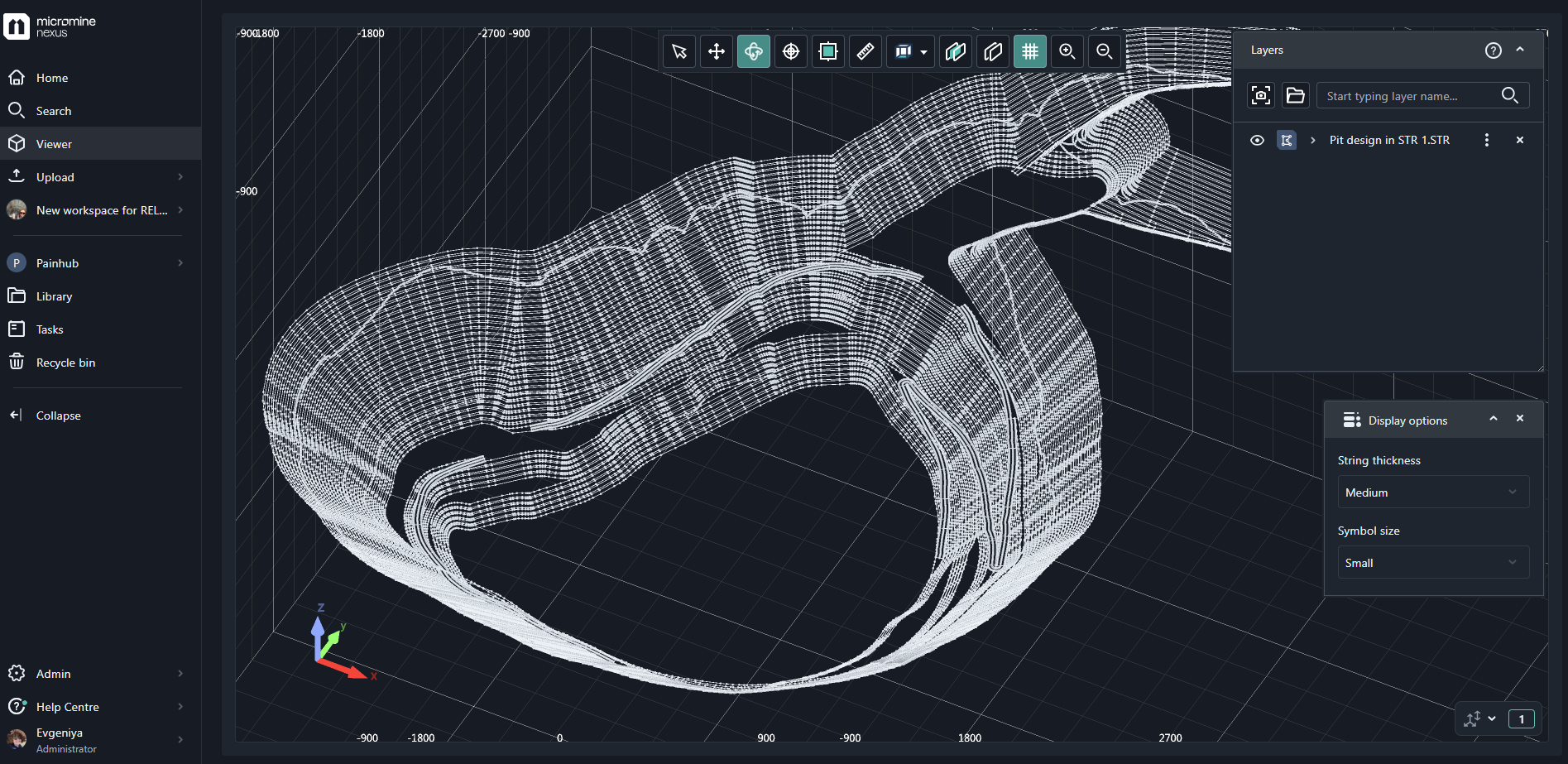

Strings.STR preview in Nexus Viewer

Micromine Nexus Viewer now supports the visualisation of string data from Micromine Origin & Beyond. All .STR files uploaded to Nexus—whether via the browser or directly from Origin & Beyond—can now be previewed within the application.

Supported .STR files will display an "eye" icon in the Nexus Project or Library, indicating that a preview is available.

Coordinate and JOIN fields will be automatically mapped based on standard field names.
If your coordinate and JOIN fields use custom names, you can manually map them by selecting the three-dots menu on the String object in the Layers panel within the Viewer.

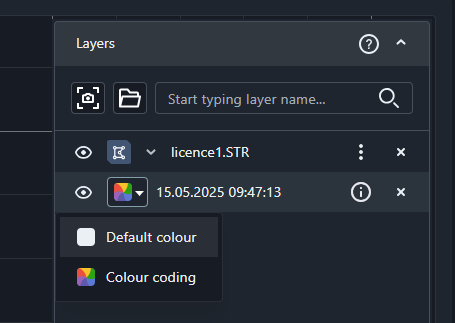

The three-dots menu for String objects now includes Display Options.
Users can customise the point size, string thickness, choose the label field, and set the label position directly from this menu.

String visualisation now also supports colour coding based on selected character or numeric fields from this file.

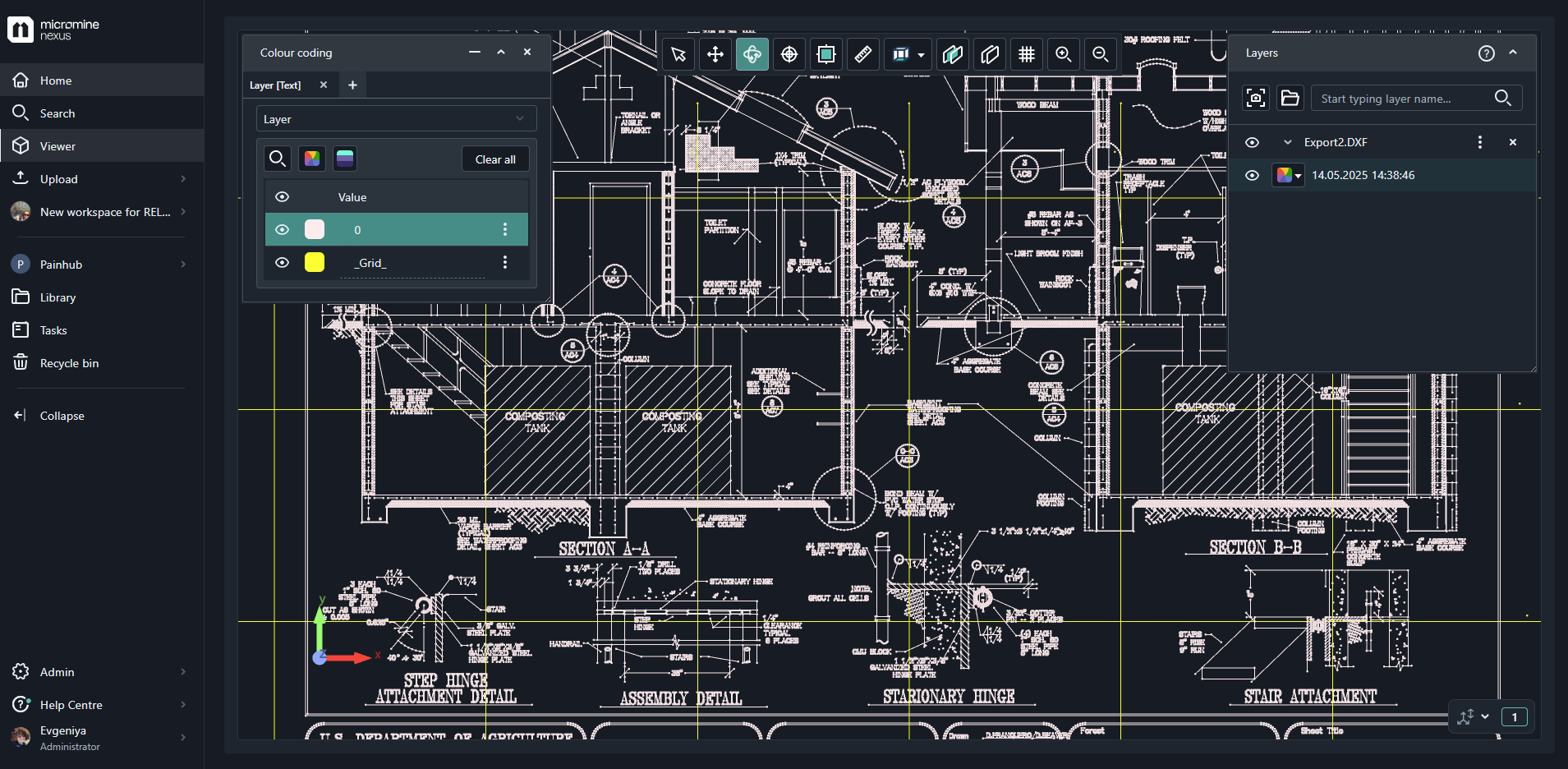

DXF preview in Nexus Viewer

Micromine Nexus Viewer now supports visualisation of certain DXF file versions.
All DXF files that are supported for preview will display an "eye" icon.

Object page

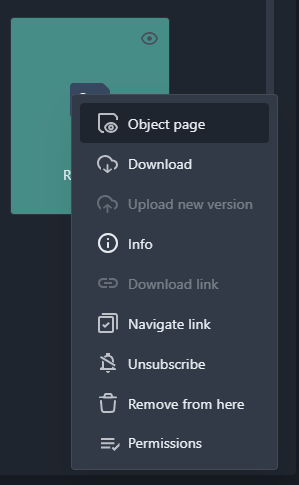

All objects can now be opened via the Object Page (available via the right-click context menu or the Info panel for the selected object), which consolidates all relevant information and actions in a single, convenient location.

The Object Page includes:

Object Preview:
- 3D preview for supported objects via the Nexus Viewer
- Document preview for supported formats via the Nexus Document Viewer
Attributes:
- Metadata and description
- Standard attributes (e.g., number of drillholes or total drilled metres for Drillhole objects, volume for Wireframe objects)
- Custom attributes (user-defined)
Version History and Branches
Object Locations
Related Tasks referencing the object
Comments on the object

Additionally, the page provides access to all available actions, such as:

Subscribe to updates
Manage permissions
Download
Upload a new version, and more

Moreover, all object update notifications will now redirect the user to the corresponding Object Page.

Easy upload option

A new, easy and convenient way to upload large volumes of data has been introduced in the Nexus browser version.
Users no longer need to click the Upload button. Simply select multiple folders and/or files and drag them to any area within the Nexus application—the entire interface will become a drag-and-drop zone, and the upload process will start automatically.

Drillhole object visualisation settings

New visualisation features have been added for Drillhole objects within the Nexus Viewer.

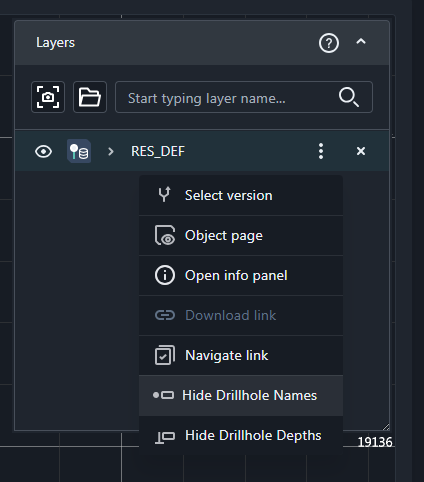

In the three-dots menu of the Drillhole object inside the Layers panel, users can now:

Hide drillhole names displayed at the collars
Hide drillhole depth labels shown at the end of each drillhole

Advanced Colour Palette

A new Advanced Colour Palette (accessible via the Default Colour option in the colour box dropdown menu) has been added for all Viewer objects.

The new colour palette now includes three tabs:

Basic – a standard set of colours

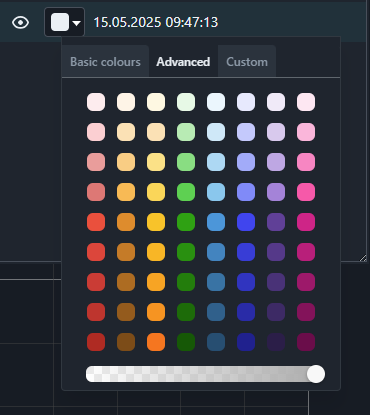

Advanced – an extended palette featuring a colour ramp for more precise selection

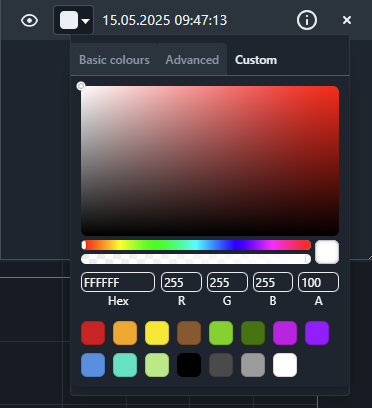

Custom – allows manual input of HEX and RGB colour codes

Micromine Origin & Beyond Updates Related to Micromine Nexus

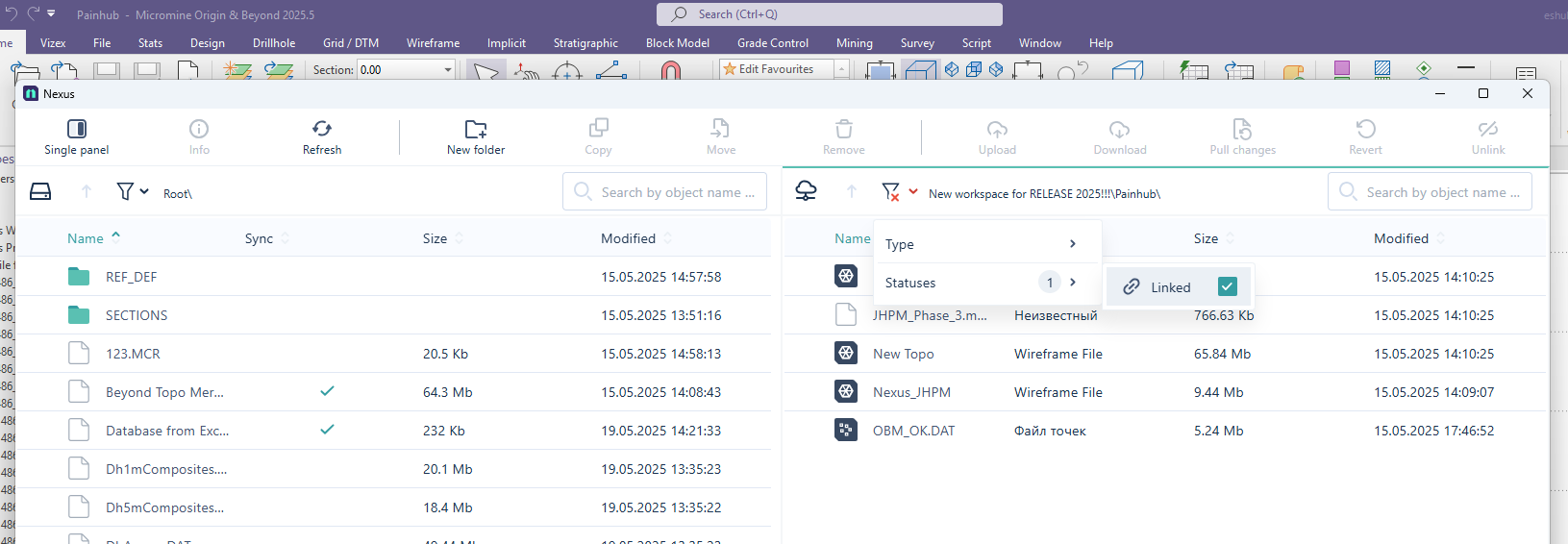

New File manager filters

New filters for Object Type and Linked Status have been added to the Nexus section of the File Manager applet.

Nexus Macro/Script commands

Nexus commands such as Upload to Nexus, Download from Nexus, and Sync with Nexus can now be scripted or added to a macro.

Micromine Alastri Related to Micromine Nexus

Nexus status for block models

For block models added from Micromine Nexus, Micromine Alastri now displays the Nexus status, allowing users to check whether the local version of the block model file is up to date. Users can use the Nexus status option to force a manual check for the latest file version.

Micromine Geobank Related to Micromine Nexus

Upload Drillhole collections to Nexus Drillhole objects

Drillhole data can now be uploaded directly from Geobank to a Nexus Drillhole object, enabling users to preview the data in 3D within the Nexus Viewer and seamlessly share it with the Micromine Origin application.
